Lab 1 – Create simple VIP, and verify HTTP¶
Task 1 – Create simple VIP¶
Following is a sample Puppet manifest file (site.pp) for configuring an
HTTP application on the BIG-IP platform:
node bigip1 {
f5_vlan { '/Common/internal_vlan':
ensure => 'present',
auto_last_hop => 'enabled',
cmp_hash => 'src-ip',
description => 'This is VLAN 10',
fail_safe => 'enabled',
fail_safe_action => 'restart-all',
fail_safe_timeout => '90',
mtu => '1500',
sflow_polling_interval => '3000',
sflow_sampling_rate => '4000',
source_check => 'enabled',
vlan_tag => "100",
interfaces => [{name => '1.2', tagged => false}]
}
f5_vlan { '/Common/external_vlan':
ensure => 'present',
auto_last_hop => 'enabled',
cmp_hash => 'src-ip',
description => 'This is VLAN 11',
fail_safe => 'enabled',
fail_safe_action => 'restart-all',
fail_safe_timeout => '90',
mtu => '1500',
sflow_polling_interval => '3000',
sflow_sampling_rate => '4000',
source_check => 'enabled',
vlan_tag => "101",
interfaces => [{name => '1.1', tagged => false}]
}
f5_selfip { '/Common/internal_self_ip':
ensure => 'present',
address => '10.1.20.111/24',
vlan => '/Common/internal_vlan',
traffic_group => '/Common/traffic-group-local-only',
inherit_traffic_group => 'false',
}
f5_selfip { '/Common/external_self_ip':
ensure => 'present',
address => '10.1.10.111/24',
vlan => '/Common/external_vlan',
traffic_group => '/Common/traffic-group-local-only',
inherit_traffic_group => 'false',
}
f5_node { '/Common/web_server_1':
ensure => 'present',
address => '10.1.20.11',
description => 'Web Server Node 1',
availability_requirement => 'all',
health_monitors => ['/Common/icmp'],
}
f5_node { '/Common/web_server_2':
ensure => 'present',
address => '10.1.20.12',
description => 'Web Server Node 2',
availability_requirement => 'all',
health_monitors => ['/Common/icmp'],
}
f5_node { '/Common/web_server_3':
ensure => 'present',
address => '10.1.20.13',
description => 'Web Server Node 3',
availability_requirement => 'all',
health_monitors => ['/Common/icmp'],
}
f5_pool { '/Common/web_pool':
ensure => 'present',
members => [
{ name => '/Common/web_server_1', port => '80', },
{ name => '/Common/web_server_2', port => '80', },
{ name => '/Common/web_server_3', port => '80', },
],
availability_requirement => 'all',
health_monitors => ['/Common/http_head_f5'],
require => [
F5_node['/Common/web_server_1'],
F5_node['/Common/web_server_2'],
F5_node['/Common/web_server_3'],
],
}
f5_virtualserver { '/Common/http_vs':
ensure => 'present',
provider => 'standard',
default_pool => '/Common/web_pool',
destination_address => '10.1.10.240',
destination_mask => '255.255.255.255',
http_profile => '/Common/http',
service_port => '80',
protocol => 'tcp',
source => '0.0.0.0/0',
source_address_translation => 'automap',
require => F5_pool['/Common/web_pool'],
}
}
This example features three tasks:
- You must first establish your web servers. The F5 module called “f5_node” adds three web servers: web_server_1, web_server_2, and web_server_3, each with the minimum number of parameters possible and a health monitor that pings each server directly to make sure it is still responsive.
- Next, establish the pool of servers. The
f5_poolmodule creates a pool namedweb_pooland also adds the node members created above as the pool members. - The
f5_virtualservermodule creates a virtual serverhttp-vswith an http profile, and theweb_poolcreated above.
Note that we also have to set up the proper internal and external VLAN’s and self IP’s needed for the web servers.
Before running puppet device (command for Puppet Network Device), there are no
virtual servers, pools, or nodes configured on the BIG-IP device. Running
the puppet device -v --user=root command will have the device proxy node
generate a certificate and apply your classifications to the F5 device.
$ sudo puppet device -v --user=root --trace
Info: starting applying configuration to bigip1 at https://10.1.1.246:443
Info: Retrieving pluginfacts
Info: Retrieving plugin
Info: Caching catalog for bigip1
Info: Applying configuration version '1530309558'
Notice: /Stage[main]/Main/Node[bigip1]/F5_vlan[/Common/internal_vlan]/ensure: created
Notice: /Stage[main]/Main/Node[bigip1]/F5_vlan[/Common/external_vlan]/ensure: created
Notice: /Stage[main]/Main/Node[bigip1]/F5_selfip[/Common/internal_self_ip]/ensure: created
Notice: /Stage[main]/Main/Node[bigip1]/F5_selfip[/Common/external_self_ip]/ensure: created
Notice: /Stage[main]/Main/Node[bigip1]/F5_node[/Common/web_server_1]/ensure: created
Notice: /Stage[main]/Main/Node[bigip1]/F5_node[/Common/web_server_2]/ensure: created
Notice: /Stage[main]/Main/Node[bigip1]/F5_node[/Common/web_server_3]/ensure: created
Notice: /Stage[main]/Main/Node[bigip1]/F5_pool[/Common/web_pool]/ensure: created
Notice: /Stage[main]/Main/Node[bigip1]/F5_virtualserver[/Common/http_vs]/ensure: created
Info: Node[bigip1]: Unscheduling all events on Node[bigip1]
Notice: Applied catalog in 1.38 seconds
Task 2 – Verify configuration¶
Puppet has now created a new, fully configured virtual server (Figure 1). This server is load balancing HTTP applications across a newly created pool (Figure 2). The pool includes three newly created web servers (Figure 3).

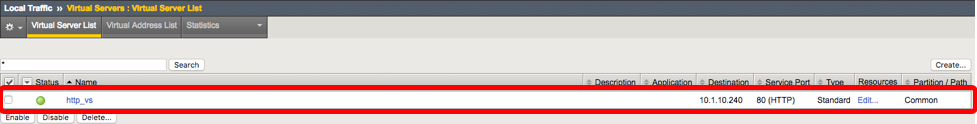

Figure 1:

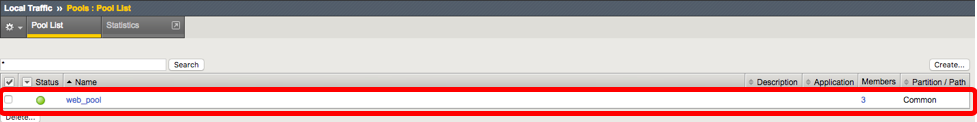

Figure 2:

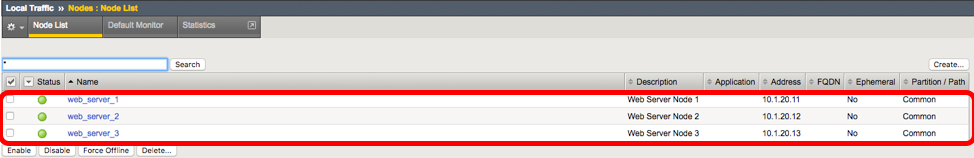

Figure 3:
Task 3 – Delete configuration¶
Next, modify your site.pp to remove all the configuration:
node bigip1 {
f5_virtualserver { '/Common/http_vs':
ensure => 'absent',
provider => 'standard',
protocol => 'tcp',
}
f5_pool { '/Common/web_pool':
ensure => 'absent',
}
f5_node { '/Common/web_server_1':
ensure => 'absent',
}
f5_node { '/Common/web_server_2':
ensure => 'absent',
}
f5_node { '/Common/web_server_3':
ensure => 'absent',
}
f5_selfip { '/Common/internal_self_ip':
ensure => 'absent',
}
f5_selfip { '/Common/external_self_ip':
ensure => 'absent',
}
f5_vlan { '/Common/internal_vlan':
ensure => 'absent',
}
f5_vlan { '/Common/external_vlan':
ensure => 'absent',
}
}
$ sudo puppet device -v --user=root --trace
Info: starting applying configuration to bigip1 at https://10.1.1.246:443
Info: Retrieving pluginfacts
Info: Retrieving plugin
Info: Caching catalog for bigip1
Info: Applying configuration version '1530311849'
Notice: /Stage[main]/Main/Node[bigip1]/F5_virtualserver[/Common/http_vs]/ensure: removed
Notice: /Stage[main]/Main/Node[bigip1]/F5_pool[/Common/web_pool]/ensure: removed
Notice: /Stage[main]/Main/Node[bigip1]/F5_node[/Common/web_server_1]/ensure: removed
Notice: /Stage[main]/Main/Node[bigip1]/F5_node[/Common/web_server_2]/ensure: removed
Notice: /Stage[main]/Main/Node[bigip1]/F5_node[/Common/web_server_3]/ensure: removed
Notice: /Stage[main]/Main/Node[bigip1]/F5_selfip[/Common/internal_self_ip]/ensure: removed
Notice: /Stage[main]/Main/Node[bigip1]/F5_selfip[/Common/external_self_ip]/ensure: removed
Notice: /Stage[main]/Main/Node[bigip1]/F5_vlan[/Common/internal_vlan]/ensure: removed
Notice: /Stage[main]/Main/Node[bigip1]/F5_vlan[/Common/external_vlan]/ensure: removed
Info: Node[bigip1]: Unscheduling all events on Node[bigip1]
Notice: Applied catalog in 2.93 seconds
