F5 Programmability Training > Class 2: Building Continuous Delivery Pipelines > Module 3: Stitching Workflows from Class 1 into new Orchestratable Collections Source | Edit on

Lab 3.3 - Execute f5-newman-wrapper for an Operations Workflow

In the last lab we walked through creating an Application Service Framework, and then updating the Service Framework in a separate call. This lab has 2 f5-newman-files also, one used to user-down a pool member, and another to user-up the same member. These could be used as individual calls from another toolkit (which we’ll see later) or run independently as a single commands.

Task 1 - Execute f5-newman-build-3

  1. Navigate to the location containing the f5-newman-wrapper files /home/snops/f5-automation-labs/jenkins/f5-newman-operation

  2. On BIGIP-A, examine the pool module_3_pool, you should see 2 active (Green) pool members:

    lab-3-2

  3. f5-newman-build-3 contains calls to change the nodes for our service (to our Blue service ports) AS3 declarations use a false mechanism for pool members, keeping them in the delclaration but removing them from being used as a target

    Execute: f5-newman-wrapper f5-newman-build-3

    Output should look like:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
    [root@f5-super-netops] [/home/snops/f5-automation-labs/jenkins/f5-newman-operation] # f5-newman-wrapper f5-newman-build-3
[f5-newman-build-3-2018-07-30-08-08-11] starting run
[f5-newman-build-3-2018-07-30-08-08-11] [runCollection][Authenticate to BIG-IP] running...
newman

BIGIP_API_Authentication

❏ 1_Authenticate
↳ Authenticate and Obtain Token
  POST https://10.1.1.10/mgmt/shared/authn/login [200 OK, 1.62KB, 559ms]
  ✓  [POST Response Code]=200
  ✓  [Populate Variable] bigip_token=NRLGYNMNR5Z5WVLHAMHZYQBXGN

↳ Verify Authentication Works
  GET https://10.1.1.10/mgmt/shared/authz/tokens/NRLGYNMNR5Z5WVLHAMHZYQBXGN [200 OK, 1.44KB, 22ms]
  ✓  [GET Response Code]=200
  ✓  [Current Value] token=NRLGYNMNR5Z5WVLHAMHZYQBXGN
  ✓  [Check Value] token == NRLGYNMNR5Z5WVLHAMHZYQBXGN

↳ Set Authentication Token Timeout
  PATCH https://10.1.1.10/mgmt/shared/authz/tokens/NRLGYNMNR5Z5WVLHAMHZYQBXGN [200 OK, 1.44KB, 79ms]
  ✓  [PATCH Response Code]=200
  ✓  [Current Value] timeout=1200
  ✓  [Check Value] timeout == 1200

┌─────────────────────────┬──────────┬──────────┐
│                         │ executed │   failed │
├─────────────────────────┼──────────┼──────────┤
│              iterations │        1 │        0 │
├─────────────────────────┼──────────┼──────────┤
│                requests │        3 │        0 │
├─────────────────────────┼──────────┼──────────┤
│            test-scripts │        3 │        0 │
├─────────────────────────┼──────────┼──────────┤
│      prerequest-scripts │        1 │        0 │
├─────────────────────────┼──────────┼──────────┤
│              assertions │        8 │        0 │
├─────────────────────────┴──────────┴──────────┤
│ total run duration: 1181ms                    │
├───────────────────────────────────────────────┤
│ total data received: 1.72KB (approx)          │
├───────────────────────────────────────────────┤
│ average response time: 220ms                  │
└───────────────────────────────────────────────┘
[f5-newman-build-3-2018-07-30-08-08-11] [runCollection][3 - Disable Node] running...
newman

f5-programmability-class-2

❏ 3 - Disable Node
↳ Step 1: Check Pool Exists
  GET https://10.1.1.10/mgmt/tm/ltm/pool/~module_3~module_3_vs~module_3_pool [200 OK, 1.87KB, 55ms]
  ✓  [GET Response Code]=200

↳ Step 2: Get Pool Members
  GET https://10.1.1.10/mgmt/tm/ltm/pool/~module_3~module_3_vs~module_3_pool/members/ [200 OK, 2.27KB, 101ms]
  ✓  [GET Response Code]=200

↳ Step 3: Patch HTTP Application Disable Green Enable Blue Members
  PATCH https://10.1.1.10/mgmt/shared/appsvcs/declare [200 OK, 1.76KB, 11.2s]
  ✓  [PATCH Response Code]=200
  ✓  [Current Value] results.0.message=success
  ✓  [Check Value] results.0.message regex /success|no change/

↳ Step 4: Get Pool Members
  GET https://10.1.1.10/mgmt/tm/ltm/pool/~module_3~module_3_vs~module_3_pool/members [200 OK, 2.27KB, 134ms]
  ✓  [GET Response Code]=200

┌─────────────────────────┬──────────┬──────────┐
│                         │ executed │   failed │
├─────────────────────────┼──────────┼──────────┤
│              iterations │        1 │        0 │
├─────────────────────────┼──────────┼──────────┤
│                requests │        4 │        0 │
├─────────────────────────┼──────────┼──────────┤
│            test-scripts │        8 │        0 │
├─────────────────────────┼──────────┼──────────┤
│      prerequest-scripts │        4 │        0 │
├─────────────────────────┼──────────┼──────────┤
│              assertions │        6 │        0 │
├─────────────────────────┴──────────┴──────────┤
│ total run duration: 12.4s                     │
├───────────────────────────────────────────────┤
│ total data received: 4.4KB (approx)           │
├───────────────────────────────────────────────┤
│ average response time: 2.9s                   │
└───────────────────────────────────────────────┘
[f5-newman-build-3-2018-07-30-08-08-11] run completed

    Note

    Notice the 200 OK responses, as it completed successfully

  4. Log back into BIG-IP A examine the pool module_3_pool status page you should see on red diamond node and another node green and online:

    lab-3-3

    We’re doing some testing on our Blue service ports, now we can see we have a bad backend server!

Task 2 - Execute f5-newman-build-4

  1. On BIG-IP A examine the pool module_3_pool, you should show only 1 Active and Green:

    lab-3-3

  2. f5-newman-build-4 contains the calls to set our all our backend service pool members to a true state in the AS3 Declaration

    Execute: f5-newman-wrapper f5-newman-build-4

    Output should look like:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
    [root@f5-super-netops] [/home/snops/f5-automation-labs/jenkins/f5-newman-operation] # f5-newman-wrapper f5-newman-build-4
[f5-newman-build-4-2018-07-30-08-03-19] starting run
[f5-newman-build-4-2018-07-30-08-03-19] [runCollection][Authenticate to BIG-IP] running...
newman

BIGIP_API_Authentication

❏ 1_Authenticate
↳ Authenticate and Obtain Token
  POST https://10.1.1.10/mgmt/shared/authn/login [200 OK, 1.62KB, 424ms]
  ✓  [POST Response Code]=200
  ✓  [Populate Variable] bigip_token=PULWUPFKHJ7LVSHJGAG4SAUAAH

↳ Verify Authentication Works
  GET https://10.1.1.10/mgmt/shared/authz/tokens/PULWUPFKHJ7LVSHJGAG4SAUAAH [200 OK, 1.44KB, 19ms]
  ✓  [GET Response Code]=200
  ✓  [Current Value] token=PULWUPFKHJ7LVSHJGAG4SAUAAH
  ✓  [Check Value] token == PULWUPFKHJ7LVSHJGAG4SAUAAH

↳ Set Authentication Token Timeout
  PATCH https://10.1.1.10/mgmt/shared/authz/tokens/PULWUPFKHJ7LVSHJGAG4SAUAAH [200 OK, 1.44KB, 42ms]
  ✓  [PATCH Response Code]=200
  ✓  [Current Value] timeout=1200
  ✓  [Check Value] timeout == 1200

┌─────────────────────────┬──────────┬──────────┐
│                         │ executed │   failed │
├─────────────────────────┼──────────┼──────────┤
│              iterations │        1 │        0 │
├─────────────────────────┼──────────┼──────────┤
│                requests │        3 │        0 │
├─────────────────────────┼──────────┼──────────┤
│            test-scripts │        3 │        0 │
├─────────────────────────┼──────────┼──────────┤
│      prerequest-scripts │        1 │        0 │
├─────────────────────────┼──────────┼──────────┤
│              assertions │        8 │        0 │
├─────────────────────────┴──────────┴──────────┤
│ total run duration: 1026ms                    │
├───────────────────────────────────────────────┤
│ total data received: 1.72KB (approx)          │
├───────────────────────────────────────────────┤
│ average response time: 161ms                  │
└───────────────────────────────────────────────┘
[f5-newman-build-4-2018-07-30-08-03-19] [runCollection][4 - Enable Node] running...
newman

f5-programmability-class-2

❏ 4 - Enable Node
↳ Step 1: Check Pool Exists
  GET https://10.1.1.10/mgmt/tm/ltm/pool/~module_3~module_3_vs~module_3_pool [200 OK, 1.87KB, 68ms]
  ✓  [GET Response Code]=200

↳ Step 2: Get Pool Members
  GET https://10.1.1.10/mgmt/tm/ltm/pool/~module_3~module_3_vs~module_3_pool/members/ [200 OK, 2.27KB, 85ms]
  ✓  [GET Response Code]=200

↳ Step 3: Patch HTTP Application Pool Enable all Members
  PATCH https://10.1.1.10/mgmt/shared/appsvcs/declare [200 OK, 1.75KB, 11.3s]
  ✓  [PATCH Response Code]=200
  ✓  [Current Value] results.0.message=success
  ✓  [Check Value] results.0.message regex /success|no change/

↳ Step 4: Get Final Declaration
  GET https://10.1.1.10/mgmt/shared/appsvcs/declare/module_3 [200 OK, 1.63KB, 221ms]
  ✓  [GET Response Code]=200

┌─────────────────────────┬──────────┬──────────┐
│                         │ executed │   failed │
├─────────────────────────┼──────────┼──────────┤
│              iterations │        1 │        0 │
├─────────────────────────┼──────────┼──────────┤
│                requests │        4 │        0 │
├─────────────────────────┼──────────┼──────────┤
│            test-scripts │        8 │        0 │
├─────────────────────────┼──────────┼──────────┤
│      prerequest-scripts │        4 │        0 │
├─────────────────────────┼──────────┼──────────┤
│              assertions │        6 │        0 │
├─────────────────────────┴──────────┴──────────┤
│ total run duration: 12.4s                     │
├───────────────────────────────────────────────┤
│ total data received: 3.75KB (approx)          │
├───────────────────────────────────────────────┤
│ average response time: 2.9s                   │
└───────────────────────────────────────────────┘
[f5-newman-build-4-2018-07-30-08-03-19] run completed

    Note

    Notice the 200 OK responses, as it completed successfully

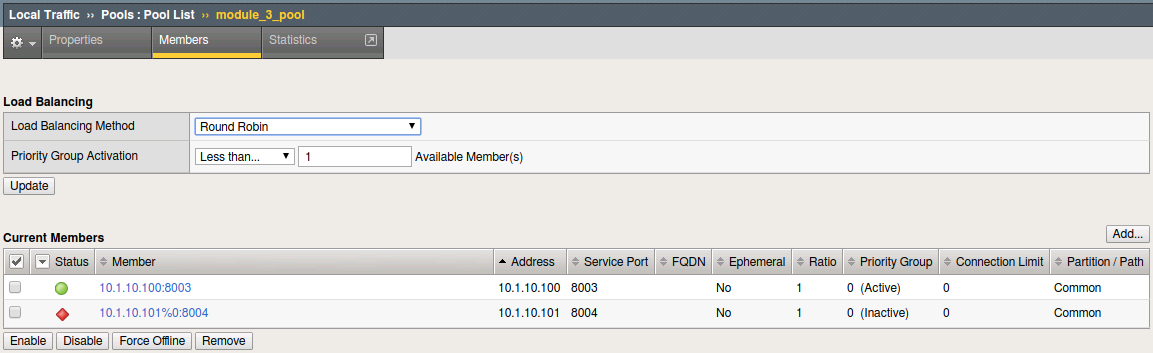

  3. On BIG-IP A examine Pool module_3_pool we now have all our nodes in the system, we left the red node in place for valid health monitoring and tracking:

    lab-3-4
